Assignment 7: Where others fear to thread

Due Friday, December 12th, before midnight

The goals for this assignment are:

  • Program several threaded applications

  • Use thread synchronization features

1. Backups

Write a program that periodically backs up text that the user types on the screen.

$ ./backup
usage: ./backup [num_seconds]
$ ./backup 3
Hello, friends. Let's always keep backups!
^C
$ ls -a
.
..
.log-1764027171.txt
.log-1764027174.txt
Makefile
backup.c

Requirements/Hints:

  • Create a background thread to periodically save logs.

  • Save logs to a file with the name .log-<time>.txt. Notice that the name starts with a dot. This is a hidden file. To see hidden files, do ls -a or ls -al. You can use time() for the filename.

  • Allow the user to write up to 4 KB of text, or 4096, characters.

  • The user can press Ctrl-C to quit

2. Comics

2.1. Background

In this assignment, you will implement a comic filter for images. You will implement the filter both single- and multi-threaded.

Before:

earth small

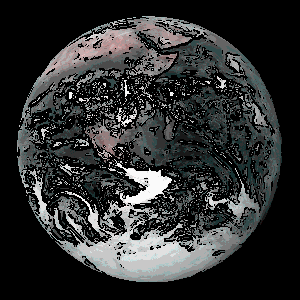

After:

earth small comic

This filter requires three steps:

  • Extracting edges and saving them in a new image

  • Reducing colors

  • Combining the edges with the reduced color image

We will work with PPM files for this assignment. Reuse your PPM implementation from your previous assignments.

2.1.1. Extract edges

Edges correspond to pixels with large changes in intensity between neighbors. We use a Sobel operator to estimate edges.

First, we need to compute the intensity of each pixel and save it to either a new image or 2D matrix (your choice) The intensity I is given by the following formula.

\$I = (red + green + blue)/3\$

If we save the intensity to the red, green, and blue channels of each pixel, we will get a grayscale image.

200px

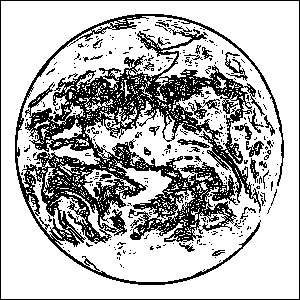

From the intensity, we can compute edges for each pixel Eij using the following formula.

\$GX_{i,j} = -p_{i-1,j-1} + p_{i+1,j-1} + -2 * p_{i-1,j} + 2 * p_{i+1,j} + -p_{i-1,j+1} + p_{i+1,j+1}\$
\$GY_{i,j} = -p_{i-1,j-1} - 2*p_{i,j-1} - p_{i+1,j-1} + p_{i-1,j+1} + 2*p_{i,j+1} + p_{i+1,j+1}\$
\$value = \sqrt{GX_{i,j} * GX_{i,j} + GY_{i,j} * GY_{i,j} }\$
\$E_{i,j} = value > 128? 0 : 255\$
200px

2.1.2. Reduce colors

We reduce colors by quantizing the colors of the image into B buckets. Each color channel is handled individually using the same formula. For example, for red

\$R = \text{bucketsize} * floor(0.5 + \text{red} / \text{bucketsize});\$

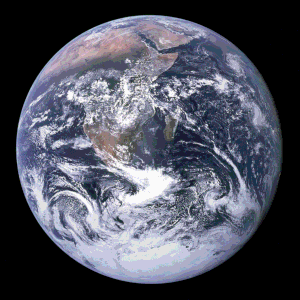

where bucketsize is 255 divided by the desired number of buckets N. In the image below, noticed the changes in color at the poles.

200px

2.1.3. Putting it together

The final effect is achieved by multiplying the edge image (Eij) with the reduced image (Rij). Each color channel is handled independently.

\$new_{i,j} = E_{i,j}/255 * R_{i,j}\$
earth small comic

2.2. Single-threaded

In the file, filter.c, implement a single-threaded program that applies a comic effect to the image "earth-small.ppm". In this question, you will get the core algorithm working, before re-implementing it to be multithreaded in the next question.

$ time ./filter
real    0m0.518s
user    0m0.513s
sys     0m0.001s

Requirements/Hints:

  • This program can be simple. You may hard-coded the input file (earth-small.ppm).

  • Your program must output a PPM file named earth-small-comic.ppm

  • Use software that can view PPM files to check your work, either via VS Code, eog (Eye of Gnome), Gimp, Photoshop, etc

2.3. Multi-threaded

In the file, filter_multithreaded.c, implement a program that applies a comic effect using multiple threads. It should run much faster than your single threaded version.

$ ./filter_multithreaded -h
usage: ./filter_multithreaded -N <NumThreads> -f <ppmfile>
$ time ./filter_multithreaded
Thread sub-image slice: rows (0,75)
Thread sub-image slice: rows (75,150)
Thread sub-image slice: rows (150,225)
Thread sub-image slice: rows (225,300)

real    0m0.249s
user    0m0.217s
sys     0m0.000s

Requirements and recommendations:

  • Each thread should divide the work of filtering the image. I recommend you divide the image into horizontal slices for faster memory access (not square blocks!)

  • You can assume that N will divide the images evenly. earth.ppm has resolution 3000x3000. earth-small.ppm has resolution 300x300.

  • Your program should output a file that matches the original but with comic in the basename, e.g. earth.ppm should become earth-comic.ppm

  • Your program must support the command line arguments.

  • Use either join (main thread) or barriers (within threads) to wait for a step to complete before a thread starts processing the next step.

  • Use additional PPM files and 2D arrays to store the results of intermediate steps.
